Environmental Benefits

Reduction of SO_x Emissions

Calumite slag is used widely around the world to help in the reduction of SO_x emissions, as it has around 1% Sulfur within its matrix in the form of Sulfides it can be used to dramatically reduce the amount of Sulfate added. The normal procedure of adding a Sulfate source, reducing it with Carbon to form the Sulfides, isn’t needed.

• Slag Sulfide allows a delayed and longer acting reaction between S2- and SO₄
• Carbon based systems tend to react earlier
• Allows the reduced redox flint and Float type glasses to be made
• Simpler redox control with a weak reducing agent such as Calumite slag
• In many cases the use of Slag will allow a saltcake free stable Amber glass to be made

In Amber glasses we regularly see reductions of 50% in Sox emissions which can in some plants ensure they operate within the legal requirements without the addition on post furnace gas treatment, or ensure that any treatment plant installed is run more economically.

Reduction of CO₂ Emissions

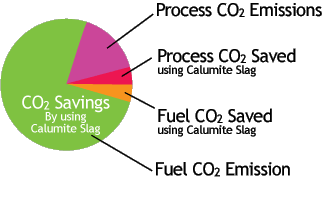

The benefits of using Calumite Slag to reduce CO₂ emissions are two-fold, with both direct savings through reducing process CO₂ emissions and indirect savings through reduced emissions associated with fuel combustion. As regulation of CO₂ emissions increases these reductions will become even more important and valuable.

Reduction of Process CO₂

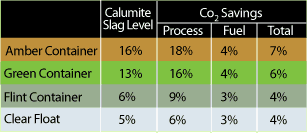

The use of Calumite Slag and partial replacement of limestone and dolomite offers a direct reduction in the evolution of CO₂ during the glass melting reactions. Up to 40% of the CaO in the glass can be provided by Calumite Slag , offering an 18% reduction in process CO₂ emissions. This also has the added benefit of reducing the amount of CO₂ in the melt which has the potential to form seed or blister defects in the final production glass.

Reduction of CO₂ Emissions from Fuel Consumption

The reduced energy consumption through the use of Calumite Slag results in reduced CO₂ released during combustion, whether the furnace is gas or oil fired. In amber and green container furnaces, a 5 - 8% reduction in fuel consumption can be achieved, offering a corresponding reduction in CO₂ emissions.

Reduction of NO_x

In an air-fired furnace, with approximately 70% of the atmosphere being nitrogen, the rate of NO_x formation increases exponentially with temperature. Therefore, reduction in furnace crown temperatures that can be achieved by using Calumite Slag due to its faster, more efficient melting has a major impact on NO_x reduction. The implementation of Calumite Slag can lead to a 30°C reduction in crown temperature, which equates to a 10% reduction in thermal NO_x.

An Environmentally Sound Raw Material

The use of Calumite Slag in the batch reduces the quarrying of virgin raw materials, through the partial replacement of limestone and dolomite. In addition, feldspar and nepheline syenite, or other Alumina sources, can be wholly or partially removed from the batch.
